A polyester DTY fabric may look uniform in greige form, then develop visible barré, streaks, or shade differences after dyeing. The frustrating part is that the dye bath is not always the real source of the problem. Variations in yarn structure, texturing history, knitting conditions, or processing can all affect the final color appearance.
Understanding polyester DTY uneven dyeing starts with reading the defect pattern correctly. A repeating band, a random streak, and a whole-roll shade shift point to different causes. Identifying that distinction early helps narrow the investigation and avoid unnecessary recipe adjustments or reprocessing.
A regular pattern carries useful information. When light and dark bands repeat at similar intervals, follow particular courses, or appear consistently around certain feeder positions, the first investigation should move upstream toward DTY packages, yarn allocation, knitting tension, and machine positions rather than immediately toward the dye recipe.
Barré can also be partly optical. Variations in yarn geometry, crimp, loop formation, or reflectance may make neighboring areas appear different even when the difference in actual dye concentration is relatively small. Thermal history, texturing conditions, yarn tension, denier, and fiber origin can all contribute to repeating visual differences in knitted polyester.
Changing the recipe before establishing this pattern can therefore create a second variable without removing the first.
Irregular pale or dark areas deserve a different line of investigation. Uneven pretreatment, restricted liquor circulation, inconsistent temperature distribution, poor fabric movement, abnormal machine loading, and localized oil contamination can all affect how uniformly the dye reaches and penetrates polyester.
Disperse dyeing depends on maintaining a stable dye dispersion and suitable conditions throughout the cycle. Dye-bath temperature, pH, dispersion stability, circulation, and the accessibility of the polyester structure all influence uptake and leveling.
A defect with no repeat interval is therefore less likely to be diagnosed by tracing one feeder alone.
When an entire roll is slightly darker, lighter, or different in hue from the approved standard, the investigation changes again. Compare DTY lots, dyeing batches, machine records, loading conditions, and heat-setting or finishing histories rather than treating the issue as a localized streak.
Visible pattern | Check first | Typical evidence |
Regular repeating bands | DTY / knitting | Follows cone, feeder, or course |
Isolated directional streaks | Yarn path / processing | Localized along a consistent path |
Random light or dark areas | Dyeing conditions | No regular repeat |
Whole-roll shade shift | Batch consistency | Uniform difference from the standard |
Recognizing these patterns early prevents several unrelated forms of polyester DTY uneven dyeing from being grouped under one diagnosis.
Two DTY packages can carry the same nominal denier, filament count, and luster while responding differently in a dye bath. The reason lies partly in how DTY is made. Partially oriented polyester yarn is subjected to drawing, heating, false twisting, cooling, tension, and winding, so the finished yarn carries a thermal and mechanical history that is not fully described by its basic commercial specification.
Heater conditions, draw ratio, yarn tension, false-twist settings, texturing speed, and thermal exposure can alter the internal structure created during processing. Changes in these parameters can affect dyeing response, while non-uniformity in the feed yarn may continue through texturing and later become visible as barré.
Why does that matter for color? Polyester is semi-crystalline, and disperse dyes must diffuse into accessible regions of the polymer. Dye diffusion is strongly influenced by the accessible amorphous regions and molecular arrangement within the fiber. Small changes in orientation, crystallinity, or thermal history can therefore affect how readily dye molecules penetrate the material.
Small structural differences can consequently become color differences. If one package has a slightly different orientation or thermal history, its equilibrium shade or rate of dye uptake may not match adjacent yarn perfectly.
Lot mixing is one of the most practical explanations for barré that appears unexpectedly. A replacement package may match the original yarn in count, filament number, luster, and general physical appearance but originate from another POY batch or texturing run.
That difference may be almost invisible in greige fabric. Once disperse dyes begin diffusing into the polyester, however, differences in dye affinity can become much easier to see, particularly when adjacent yarns are placed repeatedly across the knitted structure. A controlled comparison of suspect and approved yarn under identical dyeing conditions is usually more informative than assuming that matching specification labels guarantee matching dyeability.
For this reason, managing polyester DTY uneven dyeing starts with lot discipline. Yarn packages should remain identifiable through storage, knitting, and fabric production, and changes in lot or processing history should be recorded instead of becoming anonymous substitutions.
Not every yarn-related streak comes from the polymer structure. DTY carries finishes needed for processing, while additional oils can enter during knitting. Variation in finish pickup, excessive knitting lubricant, contamination during handling, or incomplete removal before dyeing can create localized surface conditions that differ from neighboring yarn.
Residual manufacturing oils can interfere with wetting, dye-bath contact, and consistent processing. Proper pretreatment is therefore necessary to give adjacent yarns a comparable surface condition before disperse dyeing begins.
The distinction matters during diagnosis. A structural dyeability difference may follow a yarn package even after proper preparation, while a contamination-related problem may change significantly after controlled scouring. Treating both as the same “bad yarn” problem makes corrective work less precise.
A DTY package does not have to be seriously defective for knitting to make a small variation visible. Feeder-to-feeder tension changes, inconsistent package allocation, worn or abnormal machine components, and differences in loop geometry can create repeating regions with different density, orientation, or surface appearance.
This is why the position of a defect matters as much as its color. If the same stripe follows a course or repeatedly aligns with one feeder, check the knitting machine and yarn path before adjusting disperse-dye concentration. The defect may be highlighting a structural difference in the fabric rather than a failure of dye distribution.
Traceability makes that investigation much faster. Record the fabric roll, knitting machine, feeder allocation, yarn lot, and relevant package information so that a dyed stripe can be traced back through production. Without those records, every occurrence of polyester DTY uneven dyeing becomes a new troubleshooting exercise.
Heat history after knitting also deserves attention. Polyester morphology affects dye diffusion, so non-uniform thermal treatment can create areas that subsequently respond differently to the same dyeing conditions.
Even when yarn variation is minor, an unstable dyeing process can make the difference far more visible. Thorough removal of oils, stable disperse-dye dispersion, controlled heating, adequate liquor circulation, consistent machine loading, and stable bath chemistry all support level dyeing.
Temperature deserves particular attention because disperse-dye diffusion into polyester increases strongly under elevated-temperature conditions. The heating profile should allow dye to migrate and distribute rather than create rapid differences in local uptake.
Bath stability matters as well. Unsuitable pH, dye concentration, liquor conditions, and other bath variables can destabilize disperse-dye dispersions and reduce leveling. A small package-to-package difference that might remain acceptable under controlled conditions can become conspicuous when circulation or dye migration is poor.
Post-dyeing operations can add another layer of variation. Uneven reduction clearing or inconsistent thermal finishing may alter the final surface shade, so inspectors should record when the contrast first becomes visible rather than assuming it originated during the main dyeing stage.
Effective troubleshooting reduces variables rather than adding chemicals. Start by photographing and marking the affected fabric before further treatment. Establish whether the defect repeats, measure its interval where possible, and trace the affected position back to the DTY lot, cone, knitting feeder, fabric roll, and machine.
The next step is comparison. Dye suspect DTY and known-good control yarn in the same laboratory bath under identical conditions. Review actual production records for temperature, time, pH, loading, circulation, and relevant preparation stages instead of relying only on the nominal recipe. Instrumental color measurement can help when the difference is too subtle or observer-dependent for confident visual comparison.
The results provide a practical root-cause map:
Controlled comparison | Observed result | Investigation direction |
Suspect vs. control DTY in the same bath | Shade remains different | Yarn / texturing history |
Same DTY in different fabric positions | Shade follows position | Knitting conditions |
Same fabric across different dye runs | Shade follows the run | Dyehouse reproducibility |
Stripe repeatedly follows one feeder | Fixed repeat remains | Yarn allocation / knitting |
This approach is more useful than automatically re-leveling the whole batch. Reprocessing may reduce some shade contrast because disperse dyes can migrate under suitable conditions, but it cannot reliably remove a barré pattern created by persistent yarn structure or fabric geometry. Different disperse dyes also vary in migration and leveling behavior, which can influence how successfully an uneven shade can be corrected.
The most economical correction for polyester DTY uneven dyeing is often preventing unlike materials from entering the same fabric. Keep DTY lots segregated, preserve cone-to-feeder traceability, and use comparative dyeability checks when a lot or production source changes.
Pretreatment should then remove finish and processing oils consistently before bulk dyeing. On the dyehouse side, standardize temperature profiles, loading practices, liquor circulation, bath preparation, and machine records so that process variation does not mask material variation.
A control sample provides another useful reference. When a new DTY lot is introduced, dyeing it alongside an approved material under identical conditions can show whether the new yarn behaves comparably before hundreds of kilograms enter production. That turns shade consistency from a final inspection problem into an incoming and process-control decision.
Modified polyester deserves consideration when the product specification requires a different dyeing route, but it should not be presented as a universal fix for barré.

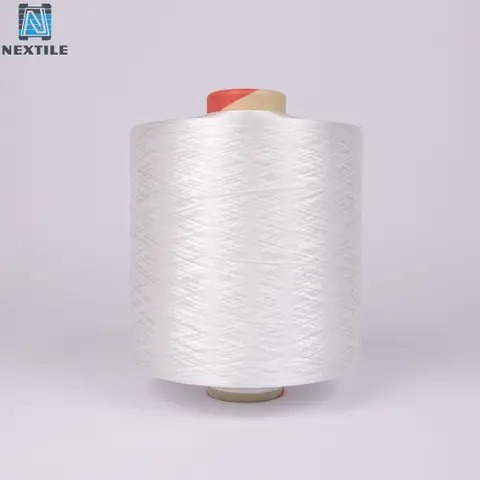

Nextile's cationic-dyeable polyester DTY contains cationic-dyeable sulfonic acid groups. It supports low-temperature dyeing under normal pressure and can also be combined with regular polyester to create deliberate differential-color effects. That application illustrates an important distinction: intentional differential dyeability is a design choice, while unexpected shade differences among yarns expected to behave alike are a quality-control issue.

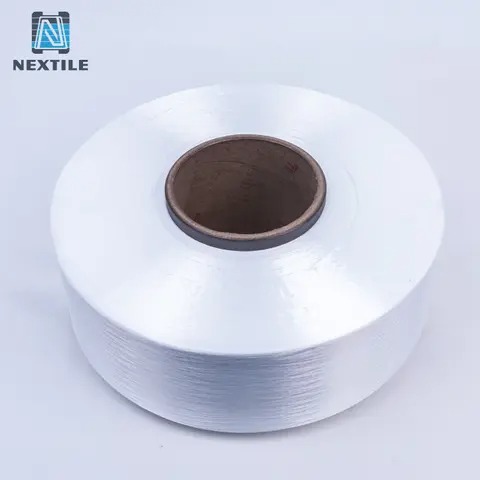

Nextile's easy-disperse-dyeable polyester DTY takes another approach. This chemically modified polyester is designed for disperse-dye dyeing under atmospheric pressure and incorporates hydrophilic components that improve moisture-related behavior compared with conventional polyester.
Material selection can therefore change the available dyeing window. It does not, however, remove the need to control yarn lots, texturing consistency, knitting tension, contamination, and dye-liquor circulation. Mixing incompatible or differently dyeable yarns without deliberate planning can still produce polyester DTY uneven dyeing, regardless of the nominal dyeability of each material.
Polyester DTY uneven dyeing becomes easier to troubleshoot once the defect pattern is linked to its most likely source. Repeating barré often points toward yarn or knitting variables, while random streaks and broader shade shifts call for closer control of pretreatment, dyeing conditions, and batch consistency. Good traceability and controlled comparisons can prevent unnecessary reprocessing.
Shanghai Nextile Fiber Technology Co. Ltd. offers polyester DTY options, including cationic dyeable and easy disperse dyeable yarns, that can help manufacturers match material characteristics with suitable dyeing routes while improving shade consistency and production control.
A: Common causes include differences in yarn texturing, mixed DTY lots, uneven knitting tension, residual oils, poor dye circulation, unstable temperature, and inconsistent pretreatment.
A: Barré often becomes visible when adjacent yarns have different dye affinity, thermal histories, crimp levels, or knitting conditions, creating repeating light and dark bands.
A: Repeating defects that follow feeders or yarn positions suggest material or knitting causes. Random patches and batch-wide shade changes more often indicate dyeing-process variation.
A: Yes. DTY packages with matching denier and filament counts can still have different texturing or thermal histories, causing noticeable dye-uptake differences after fabric dyeing.
A: Re-dyeing or leveling may reduce some shade differences, but structural barré caused by yarn properties, lot mixing, or fabric geometry may remain visible.
A: Keep yarn lots segregated, maintain feeder and roll traceability, control knitting tension, remove oils thoroughly, and standardize temperature, circulation, loading, and dyeing conditions.
