Choosing a yarn for an elastic fabric is not only a matter of denier or filament count. The same polyester CEY yarn can produce a soft, fluid knit or a more stable woven fabric because loop structure, yarn placement, tension, and heat setting all influence stretch and recovery.
For mills and sourcing teams, the real challenge is matching the yarn specification to the intended fabric performance. The sections below explain how CEY behaves in knitting and weaving, which production settings deserve attention, and what should be tested before approving bulk production.
A knitted structure gains extension from both yarn elasticity and loop deformation. This makes knitted CEY fabrics suitable for garments that must move with the body, fall softly, and recover after bending or sitting. Weft-knitted structures usually provide strong crosswise flexibility, while warp knits offer a more restrained and stable result.
Stretch cannot be predicted from yarn elongation alone. Stitch length, gauge, loop density, take-down tension, and finishing determine how much elastic potential remains available. A compact interlock may therefore feel firmer than an open jersey made from the same yarn.
Woven fabrics interlace warp and weft at right angles, naturally limiting uncontrolled extension. CEY may be placed in the weft for crosswise comfort, in the warp for lengthwise movement, or in both directions for broader mobility. This route suits trousers, skirts, dresses, light outerwear, and other fabrics that need a stable surface without excessive rigidity.
Confirm the fabric geometry before comparing denier, filament count, twist, or shrinkage. A yarn that looks suitable on paper may still deliver the wrong width, hand, or recovery after finishing.
Decision factor | Knitted CEY fabric | Woven CEY fabric |
Typical character | Soft and body-conforming | Stable and controlled |
Source of extension | Yarn plus loop deformation | Elastic yarn in a selected direction |
Priority | Comfort, drape, recovery | Directional stretch and stability |
Main concern | Feed and loop consistency | Tension, abrasion, shrinkage |
Product direction | Tops, dresses, casualwear | Trousers, skirts, outerwear |
Begin with the fabric the customer expects to receive, not with the most available yarn count. The brief should define stretch direction, target extension, acceptable residual growth, weight, thickness, opacity, luster, hand, and shape retention. “High stretch” is too vague because a fabric that extends easily but remains enlarged after wear may fail a commercial comfort-stretch requirement.
Different products require different balances. A lightweight knit may prioritize softness, fluid drape, and easy movement, while a woven trouser fabric needs controlled extension and reliable recovery around the seat and knees. Structured outerwear may accept lower stretch if it retains its silhouette and remains stable after heat setting and laundering.
Denier indicates linear density, but it should be read with filament count because the combination affects bulk, coverage, surface character, and processing behavior. Composite components determine how the yarn develops stretch and contraction, while luster choices influence the visual surface. Twist level and direction can change cohesion, handle, torque, abrasion behavior, and opening during finishing.
Tenacity and elongation matter during knitting, warping, and weaving, but shrinkage data are equally important because CEY fabrics often develop their final character under heat. Package build, oil level, unwinding stability, and lot consistency can determine whether a laboratory sample remains stable during production. Commercial CEY ranges may include several composite structures, filament counts, and twist options rather than one universal specification.
Stable knitting begins with consistent package unwinding and balanced feed tension. The trial record should include machine gauge, feeder tension, stitch length, take-down tension, speed, and any points where the yarn contacts guides or tension devices. Settings used for conventional DTY or another polyester filament should not be copied automatically because a composite elastic yarn can respond differently to tension and heat.
Excessive feed tension may hold the yarn in an extended state and suppress the recovery expected after relaxation. Uneven tension between feeders can produce horizontal barré, local width differences, irregular loop size, or inconsistent stretch across the roll. The yarn path should therefore be checked for sharp angles, contaminated guides, and uneven tensioning before changes are made to the yarn specification.
Use a small number of deliberately different settings rather than many undocumented adjustments. Produce a greige sample, allow it to relax, and record its width, weight, loop appearance, and surface uniformity. After dyeing and heat finishing, measure the same properties again and compare stretch, recovery, shrinkage, and hand.
Structure should also be treated as a design variable. Jersey can provide a lighter and more fluid result, interlock can improve coverage and stability, and rib or textured structures can emphasize directional extension. The sample that performs best at the machine may not remain the best after finishing, so approval should be based on the finished fabric rather than on knitting efficiency alone.
For repeatable bulk production, retain a signed sample and a complete setting sheet. Yarn lot, package position, machine speed, feeder values, stitch length, finishing temperature, overfeed, and final width should be traceable. This record gives the mill a practical reference when later rolls begin to drift from the approved standard.
Yarn placement should follow garment movement. CEY in the weft creates crosswise extension around areas such as hips, knees, or elbows. Warp placement creates lengthwise mobility, while using it in both systems can support multi-directional stretch but adds complexity to warping, weaving, relaxation, and width control.
For early development, weft insertion is often simpler because warp yarns remain under continuous load. A weft trial lets the mill evaluate pick density, contraction, hand, and finishing response without immediately exposing the elastic composite yarn to full warp tension. Warp use can be assessed later with tighter tension and abrasion controls.
The weave determines how freely the yarn can extend. Plain weave offers balanced stability, but a tight set can restrain CEY and make the fabric firmer than expected. Twill can provide more drape and flexibility, while layered or textured constructions add body and surface interest.
An open set is not automatically better. Too little support may lead to distortion, poor recovery, unstable width, or seam problems after finishing. Balance ends and picks per unit length with the required extension instead of maximizing stretch alone.
Full-dull CEY is suitable for plain, twill, and double-layer linen-style constructions. Depending on yarn specifications and fabric engineering, these constructions can produce a smooth surface, resilient performance, crease resistance, dimensional stability, and a dry hand. Final performance must still be verified through the intended weaving and finishing route.
When CEY is used in the warp, warping tension and beam consistency require close control. Unequal extension between ends can appear after relaxation as streaks, puckering, or width variation. Inspect heddles, reeds, drop wires, and guides for abrasion, contamination, and sharp surfaces.
Start below maximum loom speed and increase output only after break rate, selvage, pick placement, width, and surface uniformity are stable. In weft use, monitor insertion tension and package unwinding. In warp use, consider sizing only when yarn strength, abrasion, loom type, and construction justify it.
Loom and finishing settings must be developed together. Record greige, relaxed, and finished widths so that loom-related variation can be separated from changes created by wet processing or heat setting.
Yarn data and greige inspection are not enough because the final fabric changes during dyeing, washing, relaxation, drying, and heat setting. Stretch should be measured in every relevant direction, followed by immediate recovery and residual growth after a defined period. ASTM D2594 can be used for evaluating stretch and growth in low-power knitted fabrics, while ASTM D6614 covers fabric stretch and growth after specified extension and holding conditions.
Dimensional stability must also reflect the intended care route. ISO 5077 provides a method for determining dimensional change after appropriate washing and drying procedures, making it useful when shrinkage limits form part of the fabric specification. Beyond numerical testing, assess fabric weight, width, surface regularity, crease behavior, drape, hand, shade, and luster under conditions that match the customer’s actual use.
Trial problem | Likely area to investigate | Practical adjustment |
Uneven stretch | Feed, warp, or insertion tension | Standardize tension and inspect package unwinding |
Knitted fabric shows bars | Feeder imbalance or mixed lots | Balance feeders and keep sampling within one yarn lot |
Frequent warp breaks | Excessive tension or abrasion | Reduce tension and inspect heddles, reeds, and guides |
Fabric feels too stiff | Dense structure or restrictive finishing | Adjust stitch length, weave density, overfeed, or tenter width |
Recovery is weak | Overextension or unsuitable heat setting | Reduce mechanical strain and review finishing temperature |
Finished width is unstable | Uneven relaxation or shrinkage | Add controlled relaxation and verify width at each stage |
Shade or luster varies | Lot, tension, or dyeing differences | Complete laboratory dyeing and lot approval before bulk use |
Choosing composite polyester CEY yarn starts with the finished fabric: its construction, stretch direction, recovery, hand, and dimensional requirements. Knitting can provide softer movement and fluid drape, while weaving offers more controlled elasticity and structural stability. In both cases, tension, yarn placement, and finishing conditions should be validated through finished-fabric trials.

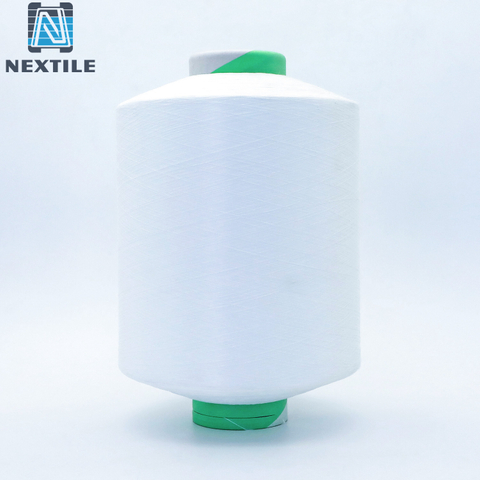

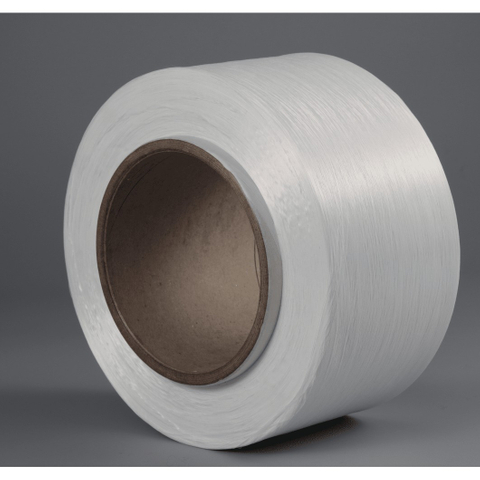

Nextile Fiber Technology Co. Ltd. supplies CEY yarn options for knitting and weaving applications, helping mills match composite yarn specifications with their production needs. Careful sampling and testing can reduce processing problems while improving fabric consistency and bulk-production efficiency.
A: Polyester CEY yarn is used in knitted and woven fabrics that need controlled stretch, recovery, drape, wrinkle resistance, and a smooth or dry hand.
A: Yes. In knitting, loop structure supports softer movement and greater flexibility. In weaving, CEY can provide directional stretch while preserving a more stable fabric surface.
A: CEY is a composite elastic yarn engineered for stretch and recovery, while standard polyester filament yarn may provide strength and stability without the same elastic response.
A: Using CEY in the weft creates crosswise stretch, while warp placement supports lengthwise movement. Using it in both directions requires tighter tension and finishing control.
A: Test finished fabric for stretch, recovery, residual growth, shrinkage, width stability, hand, surface uniformity, and shade consistency after the planned dyeing and heat-setting process.
A: Usually, yes. Feed tension, stitch length, take-down tension, loom speed, yarn-path friction, and heat-setting conditions should be adjusted through controlled trials rather than copied from standard yarns.
